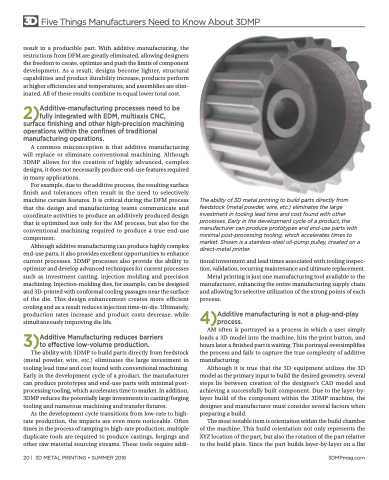

3D Five Things Manufacturers Need to Know About 3DMP
result in a producible part. With additive manufacturing, the restrictions from DFM are greatly eliminated, allowing designers the freedom to create, optimize and push the limits of component development. As a result, designs become lighter, structural capabilities and product durability increase, products perform at higher efficiencies and temperatures, and assemblies are elim- inated. All of these results combine to equal lower total cost.
2)Additive-manufacturing processes need to be fully integrated with EDM, multiaxis CNC, surface finishing and other high-precision machining
operations within the confines of traditional manufacturing operations.
A common misconception is that additive manufacturing will replace or eliminate conventional machining. Although 3DMP allows for the creation of highly advanced, complex designs, it does not necessarily produce end-use features required in many applications.
For example, due to the additive process, the resulting surface finish and tolerances often result in the need to selectively machine certain features. It is critical during the DFM process that the design and manufacturing teams communicate and coordinate activities to produce an additively produced design that is optimized not only for the AM process, but also for the conventional machining required to produce a true end-use component.
Although additive manufacturing can produce highly complex end-use parts, it also provides excellent opportunities to enhance current processes. 3DMP processes also provide the ability to optimize and develop advanced techniques for current processes such as investment casting, injection molding and precision machining. Injection-molding dies, for example, can be designed and 3D-printed with conformal cooling passages near the surface of the die. This design enhancement creates more efficient cooling and as a result reduces injection time-in-die. Ultimately, production rates increase and product costs decrease, while simultaneously improving die life.
3)Additive Manufacturing reduces barriers to effective low-volume production.
The ability with 3DMP to build parts directly from feedstock (metal powder, wire, etc.) eliminates the large investment in tooling lead time and cost found with conventional machining. Early in the development cycle of a product, the manufacturer can produce prototypes and end-use parts with minimal post- processing tooling, which accelerates time to market. In addition, 3DMP reduces the potentially large investments in casting/forging tooling and numerous machining and transfer fixtures.
As the development cycle transitions from low-rate to high- rate production, the impacts are even more noticeable. Often times in the process of ramping to high-rate production, multiple duplicate tools are required to produce castings, forgings and other raw material sourcing streams. These tools require addi-
The ability of 3D metal printing to build parts directly from feedstock (metal powder, wire, etc.) eliminates the large investment in tooling lead time and cost found with other processes. Early in the development cycle of a product, the manufacturer can produce prototypes and end-use parts with minimal post-processing tooling, which accelerates times to market. Shown is a stainless-steel oil-pump pulley, created on a direct-metal printer.
tional investment and lead times associated with tooling inspec- tion, validation, recurring maintenance and ultimate replacement. Metal printing is just one manufacturing tool available to the manufacturer, enhancing the entire manufacturing supply chain and allowing for selective utilization of the strong points of each
process.
4)Additive manufacturing is not a plug-and-play process.
AM often is portrayed as a process in which a user simply loads a 3D model into the machine, hits the print button, and hours later a finished part is waiting. This portrayal oversimplifies the process and fails to capture the true complexity of additive manufacturing.
Although it is true that the 3D equipment utilizes the 3D model as the primary input to build the desired geometry, several steps lie between creation of the designer’s CAD model and achieving a successfully built component. Due to the layer-by- layer build of the component within the 3DMP machine, the designer and manufacturer must consider several factors when preparing a build.
The most notable item is orientation within the build chamber of the machine. This build orientation not only represents the XYZ location of the part, but also the rotation of the part relative to the build plate. Since the part builds layer-by-layer on a flat
