manufacturing as engineers explore the use of 3D printing to lay down conductive materials for electrical circuits, create hous- ings for gallium-nitride transmitters and fabricate fins for guided artillery shells. The process enables rapid creation of designs and rapid alterations to be made as only the digital model of a part needs to be changed. As long as the part remains within parameters set by the 3D-printing process, new parts can be created in days instead of weeks, greatly shrinking the times and costs normally associated with R&D.
“You can design internal features that might be impossible to machine,” says Raytheon engineer Travis Mayberry, who is researching future uses of additive man- ufacturing and 3D printing, in a release detailing company efforts. “We’re trying new designs for thermal improvements and lightweight structures—things we couldn’t achieve with any other manu- facturing method.”
And the company lists other positives to the burgeoning process.
”When we print something, we have fewer piece parts, so the supply chain becomes simpler,” says Leah Hull, Raytheon additive manufacturing man- ager. “Development cycles become short- er; we are getting parts much faster. We can get much more complex with designs because we can design angles that can’t be machined into metal.”
Wherever the technology leads, its success will rely on dependable manufacturing.
“Ensuring consistent production integrity,” says Dr. Teresa Clement, a Raytheon materials expert, “will be part of the next steps in realizing this vision.”
At that point, “you could potentially have (3D printing) in the field,” adds Jere- my Danforth, a Raytheon engineer. “That’s the vision.”
But before there’s the ability to print a missile in the field, “we need quality-con- trolled processes to fabricate all the com- ponent materials: the metallic strongbacks, and the plastic connectors, the semicon- ductors for processors, and the energetics and propulsion systems,” Danforth con- tinues. “The hard part then is making the connections between these components.

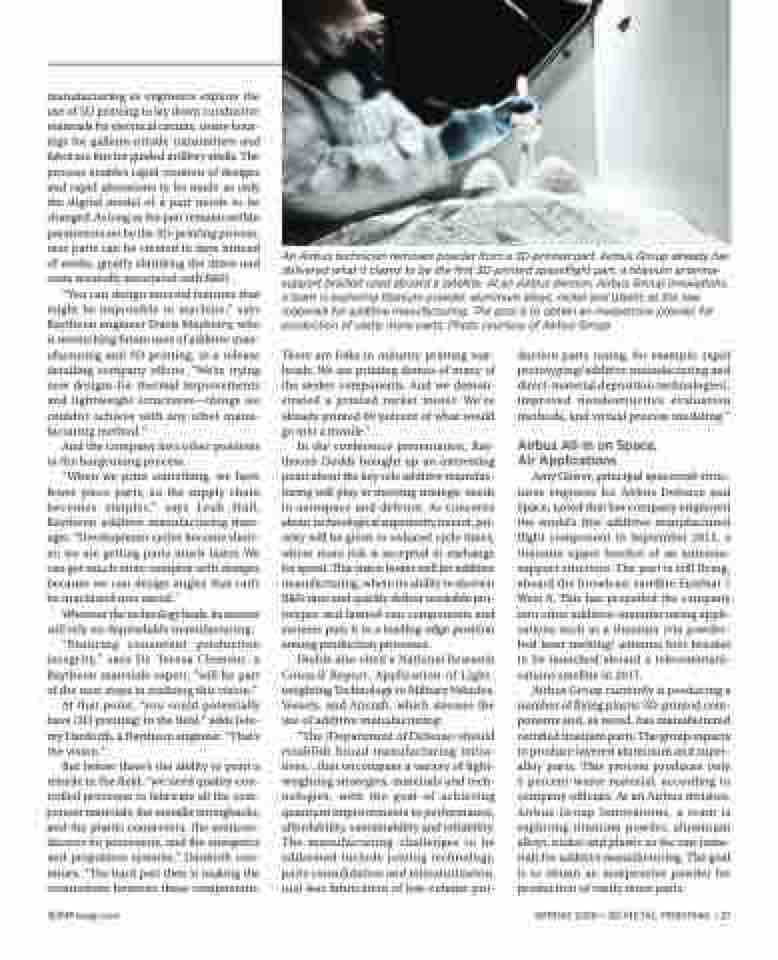

An Airbus technician removes powder from a 3D-printed part. Airbus Group already has delivered what it claims to be the first 3D-printed spaceflight part, a titanium antenna- support bracket used aboard a satellite. At an Airbus division, Airbus Group Innovations, a team is exploring titanium powder, aluminum alloys, nickel and plastic as the raw materials for additive manufacturing. The goal is to obtain an inexpensive powder for production of vastly more parts. Photo courtesy of Airbus Group
